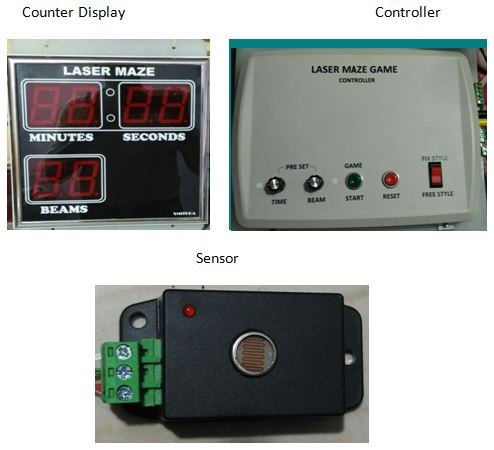

Amusement Park Projects:- Laser Maze Game

Descriptions:-

Laser mazegame is a typical amusement show for youngsters. In a dark room numbers of laser beams are passed from one side to other side. Players should cross the room without touching the laser beams. A display board will display the time taken to cross the room and a counter will count the number of beam touched by a player. Hence a player at the beginning will push start button and begin to cross the room without touching laser beams. In the display board the clock will show the time and counter will show the number of beam touched by the player. At the end the player has to push a stop button, so that the timer and counter will stop and laser beam switched off. The time taken to cross the room and number of beams touched by player will be displayed. Options are available; a player can set the time limit and number of beam touchable to cross the room. If the player exceeds any of limits, the beams will be switched off. The time and beams counted are displayed.

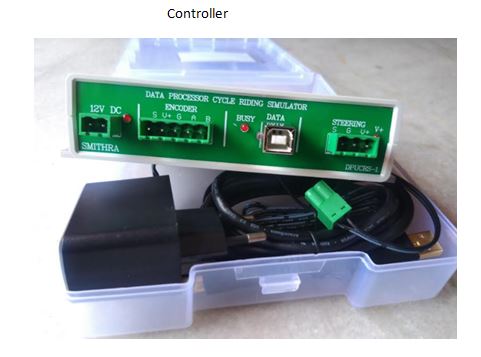

Amusement Park Projects:- Cycle Rider Simulator:

Descriptions:-

The Cycle Rider simulator is virtual reality project to provide the cycle speed input in RPM and handle bar angle input to the Server to emulate the pedaling and steering experience by the user on screen. A high precision Optical encoder connect to the wheel collects the speed data and a High reliable potentiometer connect to the handle bar to collect the angle input.

The RPM and Angle are streamed to the server continuously when the user pedals the cycle.

A calibration menu is provided to calibrate the Angle and RMP outputs based on the mechanical environment changes.
