Descriptions:-

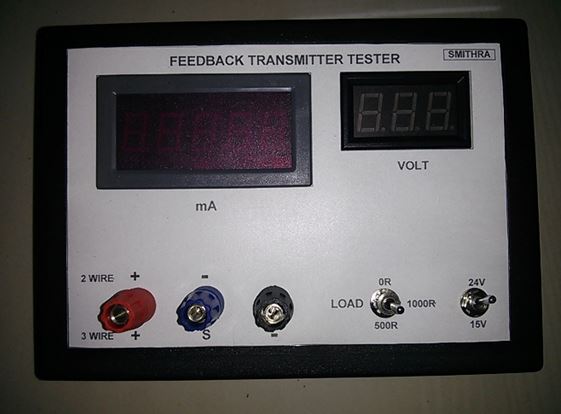

The Feedback Transmitter Tester is designed to test Angular OR Linear position sensors/transmitter with current output. Two wire transmitter and three wire transmitters with current output up to 200Ma can be tested. Digital LED Ammeter and Volt meter indicates Current measured supply voltage to the device. Optional load of 0Ω for short circuit test and 500Ω, 1000Ω for load test. Device can be tested with 15V OR 24V DC.
Application:- Industrial, Tester
Descriptions:-

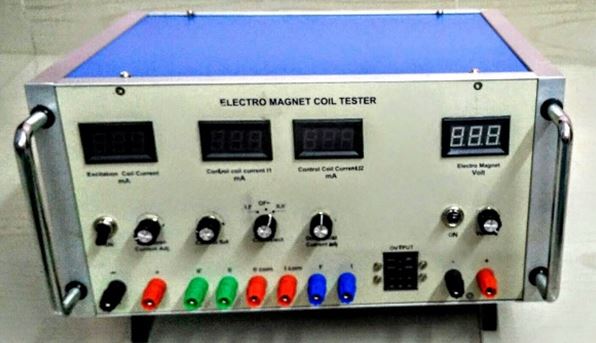

ELECTRO MAGNET COIL TESTER is developed to test Differential coil flow control valve. An independent adjustable current source will be connected to electromagnet coil. Excitation current of 600 to 900 mA adjustable will be connected to excitation coil. Dualoutput differential current sources of either 0 – 260mA or0 – 300Ma will be connected to two type ofcontrol coil. The 27V DC voltage will be connected to blocking valve. The valve will be tested by feeding differential current.
| Specifications: | |
|---|---|
| Case Style | 4U x 63T x 204 mm |
| Output – 1 | 600-900MA (Adjustable) |
| Output – 2 | 0- 260 or 0 – 300MA (Adjustable). Differential output |
| Output – 3 | Adjustable 24 - 27V DC @ 2Amps |
| Control | ON/OFF control for all outputs |
| Connector | Separate connector production testing |
| I/O connections | 2 x Banana plug Test Cable with open end |
