• 3 AXIS SINGLE SPEED DRIVER CARD
• 3 AXIS MULTISPEED DRIVER CARD
DESCRIPTIONS

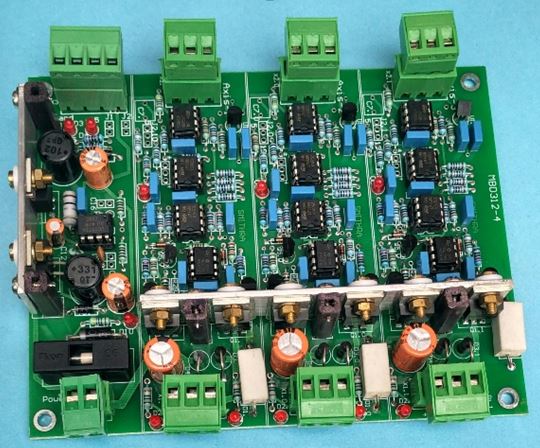

Servo amplifier designed for 3 axis motion bench equipped with hydraulic or pneumatic actuator. Command signal from computer or controller and feedback signal from potentiometer feedback are compared. The error signal switches the respective valve to move the bench up or down. The bench moves with single speed. The output is capable of driving single DCV for hydraulic motion bench OR 1,2 or 3 pneumatic valve connected in parallel for air cylinder motion bench. Power input protected for polarity reversal and output protected for over load and short circuits.
Application:- Industrial, Amusement Park, Educational Institution
| Product Id | MBD312 |
|---|---|
| No. of Axis | 3 |
| PCB Size | 145X115 mm |
| Power | 5V PWM, 0 – 5V, 0 - ±5V, 0-10V, 0 - ±10V. |
| Feedback | 0-10VDC |
| Feedback excitation | 10V DC, 10mA |
| Output | 75W @ 24V |
| Monitor | LED indication for Up/down motion, O/L & SC and power supply |
| I/o Terminal | Pluggable Connector |
DESCRIPTIONS

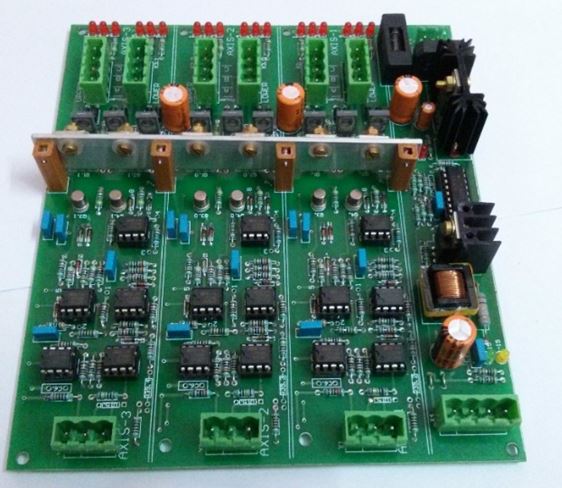

Designed to drive 3 Axis motion bench with air cylinder. 3 dual coil output per axis for UP/down motion with variable speed. The output is capable of driving pneumatic valve connected in parallel for air cylinder motion bench. Multi input command and Feedback input for position control
Applications: Motion bench and Simulators in Amusement Park and Industrial application
| Product Id | MBD332 |
|---|---|
| No. of Axis | 3 |
| Size | 180X155mm |
| Power | 18 - 24 VDC. 50 Watts |
| Command Input | 5V PWM, 0 – 5V, 0 - ±5V, 0 – 10, 0 - ±10V.< /td> |
| Feedback | 0 – 10 VDC |
| Feedback excitation | 9V DC @ 100 mA |
| Output | 3X12W @ 24 VDC |
| I/o Terminal | Pluggable Connector |
| Monitor | LED indication for power & Up/down motion, |
