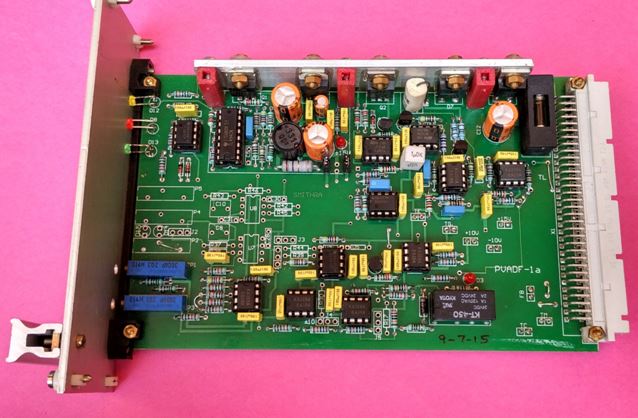

Analog Closed Loop PID controller provides a single channel interface between a control system and a unipolar or bipolar proportional solenoid actuator as well as redundant feedback devices such as a LVDT, RVDT or dc transducer
| SPECIFICATION | |
|---|---|
| Power Supply | 18-32 VDC |
| Reference (command) input | User selectable (+0-10V or 0-±10V) |
| Output current range | 0-3Amps |
| Offset current | User adjustable (0 to 20% of full scale) |
| Superimposed dither frequency | User selectable for 10 Hz, 25 Hz, 50 Hz, 100 Hz and combinations of those increments |
| Superimposed dither amplitude | User adjustable (0 to 10% of full scale) |
| LVDT excitation frequency | 3 kHz |
| Secondary feedback input | User selectable Range: 0 - ±10V |
| Position error | Adjustable from 5 to 25% |
| Open loop operation | user selectable |
| Operational temperature | 0 to 70 degrees C |
